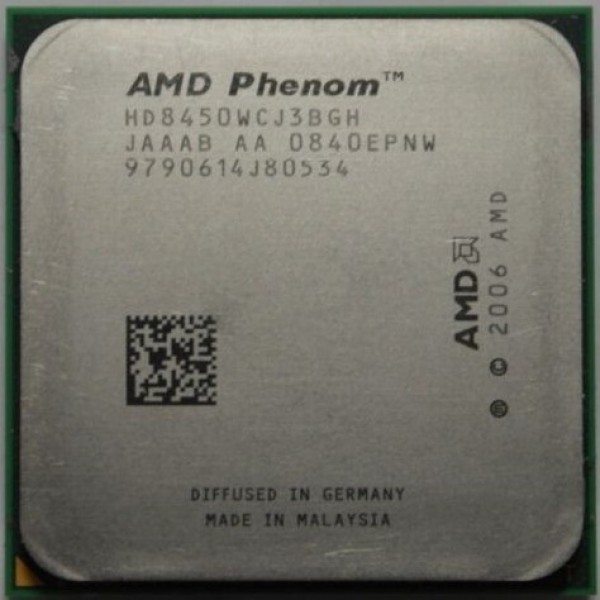

AMD Phenom X3 8450 2.1 GHz HD8450WCJ3BGH sAM2/AM2+

AMD Phenom X3 8450 2.1 GHz HD8450WCJ3BGH sAM2/AM2+

Артикул:  3819rd
250 грн.
Наличие: нет в наличии
Модель: Phenom_8450
+










AMD Phenom X3 8450 specifications

General information
Type CPU / Microprocessor
Market segment Desktop
Family AMD Phenom X3
Model number  ?  8450
CPU part numbers
  • HD8450WCJ3BGH is an OEM/tray microprocessor
  • HD8450WCGHBOX is a boxed microprocessor with fan and heatsink
Stepping codes JAAAB AA   JAAFB AA   JAAHB AA   LAAAB AA
Frequency  ?  2100 MHz
Bus speed  ?  One 1800 MHz 16-bit HyperTransport link (3.6 GT/s)
Clock multiplier  ?  10.5
Package 940-pin organic micro-PGA
Sockets Socket AM2
Socket AM2+
Introduction date Apr 23, 2008
End-of-Life date Last order date is end of 4th quarter 2008
Price at introduction $145
Architecture / Microarchitecture
Microarchitecture K10
Platform Cartwheel (mainstream platform with AMD 780G chipset)
Spider (performance platform with AMD 790FX/790GX chipsets)
Processor core  ?  Toliman
Core stepping  ?  DR-B3
CPUID 100F23
Manufacturing process 0.065 micron silicon-on-insulator (SOI) technology
Die size 285mm2
Data width 64 bit
The number of CPU cores 3
The number of threads 3
Floating Point Unit Integrated
Level 1 cache size  ?  3 x 64 KB 2-way set associative instruction caches
3 x 64 KB 2-way set associative data caches
Level 2 cache size  ?  3 x 512 KB 16-way set associative caches
Level 3 cache size 2 MB 32-way set associative shared cache
Multiprocessing Uniprocessor
Features
  • MMX instructions
  • Extensions to MMX
  • 3DNow! technology
  • Extensions to 3DNow!
  • SSE / Streaming SIMD Extensions
  • SSE2 / Streaming SIMD Extensions 2
  • SSE3 / Streaming SIMD Extensions 3
  • SSE4a  ?
  • AMD64 / AMD 64-bit technology  ?
  • EVP / Enhanced Virus Protection  ?
  • AMD-V / AMD Virtualization technology
Low power features
  • Cool'n'Quiet 2.0
  • CoolCore technology  ?
  • Independent Dynamic Core Technology  ?
  • Dual Dynamic Power Management  ?
  • Core C1 and C1E states
  • Package S1, S3, S4 and S5 states
Integrated peripherals / components
Integrated graphics None
Memory controller The number of controllers: 1
Memory channels: 2
Channel width (bits): 72
Supported memory: DDR2-1066
DIMMs per channel: up to 2
Maximum memory bandwidth (GB/s): 17.1
Other peripherals HyperTransport 3.0 technology
Electrical / Thermal parameters
V core  ?  1.2V - 1.25V
V NorthBridge 1.25V
Maximum operating temperature ?  55°C - 71°C
Thermal Design Power  ?  95 Watt
Notes on AMD Phenom X3 8450
  • On socket AM2+ platforms in the minimum performance state the processor runs at 1050 MHz / 1.05 Volt core voltage, and has TDP 55.6 Watt
  • On socket AM2 platforms in the minimum performance state the processor runs at 1050 MHz / 1.2 - 1.25 Volt core voltage, and has TDP 74.2 Watt
