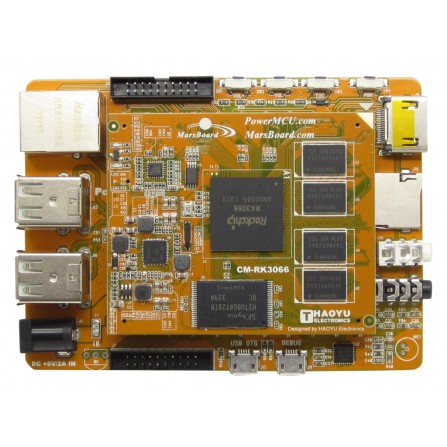

Плата MarsBoard RK3066

Плата MarsBoard RK3066

Артикул:  3841rd
1630 грн.
Наличие: Есть в наличии
Модель: RK3066
+

MarsBoard RK3066 contains CM-RK3066 and SOM-RK3066, SOM-RK3066 is OSHW and PCB files are available for study, learn, modification, re-production.

CM-RK3066 is System on Chip module, which contains Rockchip RK3066 Dual Core Cortex-A9 processor, Power managment Unit TPS659102, Ethernet PHY LAN8720A, 1GB DDR3 memory and 4G&8GB NAND Flash. All RK3066 signals are available on 2 connectors x 100 pin and 1 connector x 40 pin with 1.27mm picth.

Features

  • SoC – Rockchip RK3066 ARM Cortex A9 Dual-Core CPU @ 1.6GHz + Mali-400MP4 GPU
  • System Memory – 1GB DDR3 DRAM
  • Storage – 4 & 8GB Nand Flash
  • Ethernet – 10/100 Mbps
  • Connector - 2 connectors x 100pin, 1 connector x 40pin(No welding)
  • Size - 70 x 58mm

SOM-RK3066 is evaluation board based on CM-RK3066 module and is routed on 2 layers only. SOM-RK3066 is done to explore all features of RK3066 but the files are available and customers can tailor it to their needs.

Reference design for SOM-RK3066 with HDMI, LCD, CTP, Audio Out, Camera, 10/100M Ethernet,USB-OTG,and 4 USB hosts is available with PADS9.5, Protel99SE, AD, PCB files, so everyone can modify and tailor to his needs.

Features

  • Connectors to accomodate CM-RK3066
  • 10/100M Ethernet connector
  • USB hosts x 4
  • USB-OTG
  • LCD connector support HY070CTP-A(800x480 RGB Interface), HY070CTP-HD (1024×600 can not be directly connected, must modify the circuit, RGB interface only)
  • CTP, Capacitive touch
  • HDMI connector supported 1080p@60Hz
  • Camera connector
  • Audio Out
  • MIC input (No welding Microphones)
  • IR Remote  (No welding IR receiver)
  • SD-MMC card connector
  • 4 buttons for Android apps
  • USB Debug terminal (USB to UART with CP2102)
  • RTC Battery connector
  • One UEXT connector
  • Power supply 5V/2A input, 5.2mm(ext. diameter) x 2.1mm (int. diameter) barrel plug
  • Size 105 x 78mm

MarsBoard-RK3066 is base on Rockchip RK3066 processor. RK3066 is one of the popular processors using in the MID or TV box. It integrates two ARM Cortex-A9 processors and four mali400 graphic processors .It is one of the most powerful video decoding application processor in the world. MarsBoard-RK3066 supported Linux OS(Debian,Ubuntu etc) and Android.MarsBoard-RK3066 also integrate most of the common use interface and make it very suitable for product prototype designed, DIY and education.
