PICASO VGA-III - Графический контроллер

PICASO VGA-III - Графический контроллер

Артикул:  2226rd
500 грн.
Наличие: нет в наличии
Модель: DEV-11767
+
Simple VGA interface to variety of monitors and LCD screens.
Supports the following resolutions:
• 320 x 240 (QVGA)
• 640 x 480 (VGA)
• 800 x 480 (WVGA)
4.0V to 5.5V range operation
Supports RGB 65K true to life colors
14KB of flash memory for user code storage and 14KB of SRAM for user variables, or 14KB shared user code and program variables.
2 x Asynchronous hardware serial UART ports (COM0, COM1), TTL interface, with 300 to 600K baud.
On-board micro-SD memory card adaptor for multimedia storage and data logging purposes. HC memory card support is also available for cards larger than 4Gb.
Easy 5 pin interface to any host device:
     - VCC, TX, RX, GND, RESET. commands.
2 x Asynchronous hardware serial port, TTL interface, with 300 baud to 256K baud.
DOS compatible file access (FAT16 format) as well as low level access to card memory
Dedicated Line-Level PWM Audio pin driven by WAV files from micro-SD card.
A 30 pin header for I/O expansion (supplied but
not soldered onto the PCB)
15 pin D-type standard VGA connector to interface to any external VGA monitor, on a remote and detachable cable.

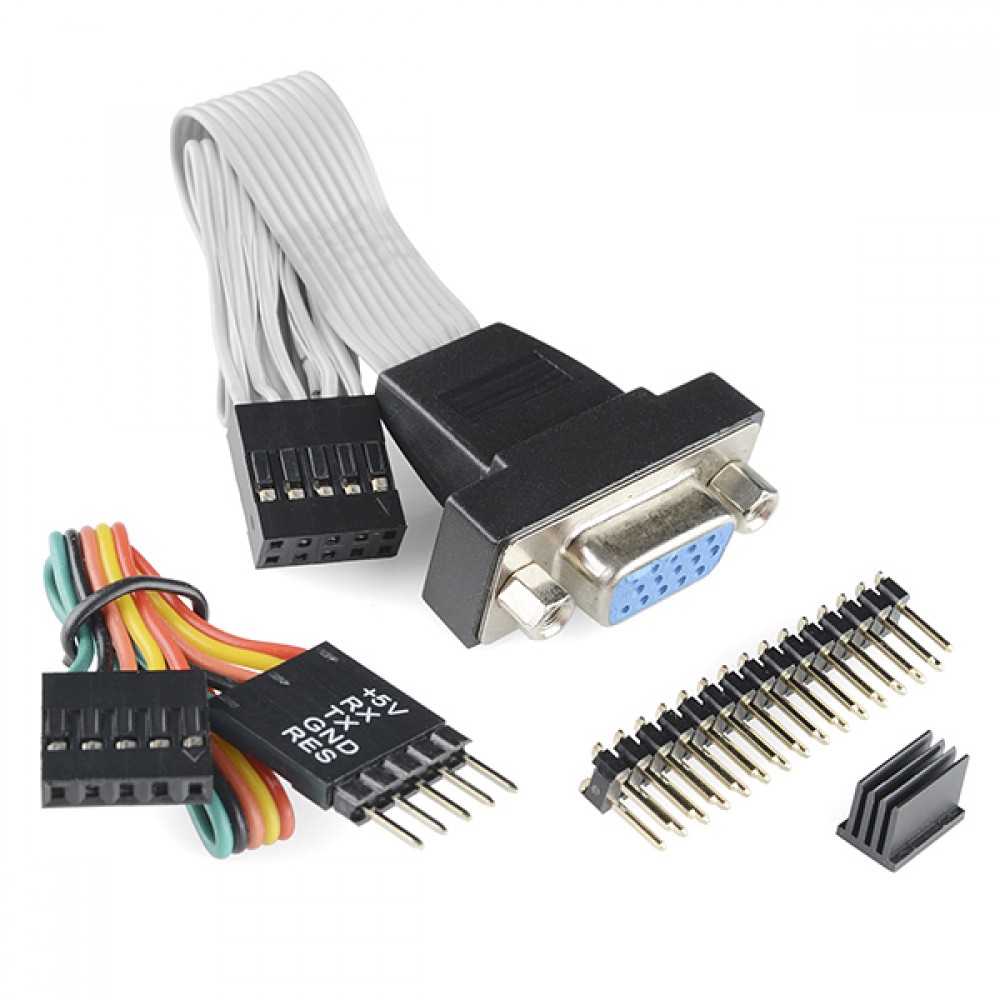

Includes:

μVGA-III Module
150mm 5 pin Female-Female jumper cable (with 5 pin Male-Male adapter to make the jumper cable into Male-Female)
VGA Cable
2x15 pin SMT Connector

39.0 x 63.0 x 21.5mm

Гарантия 2 месяца
